Description

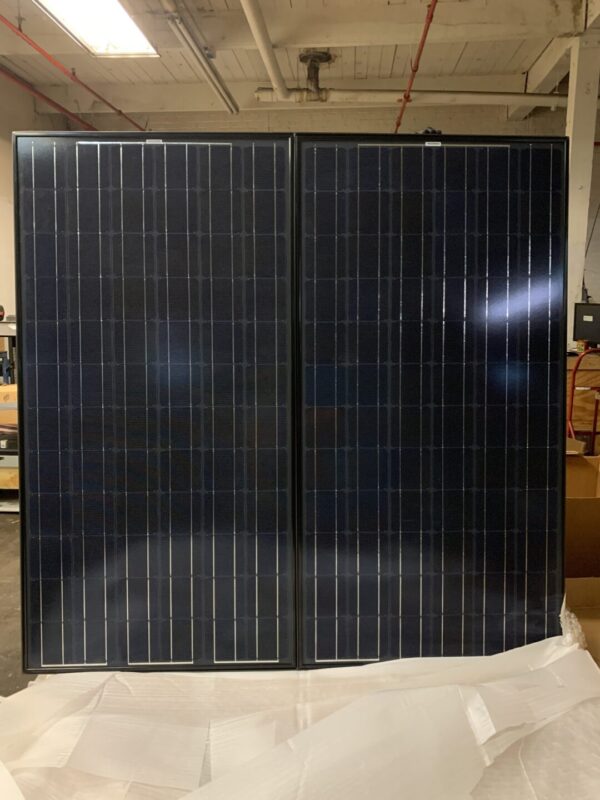

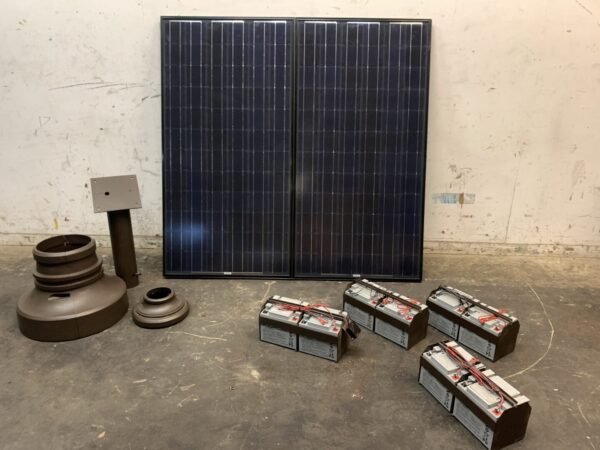

Suntech Double Panel Solar Panels STP 190s-24/Adb+ Qty. 2 w/ 1 Pole Mounting Base & Batteries CCR16091

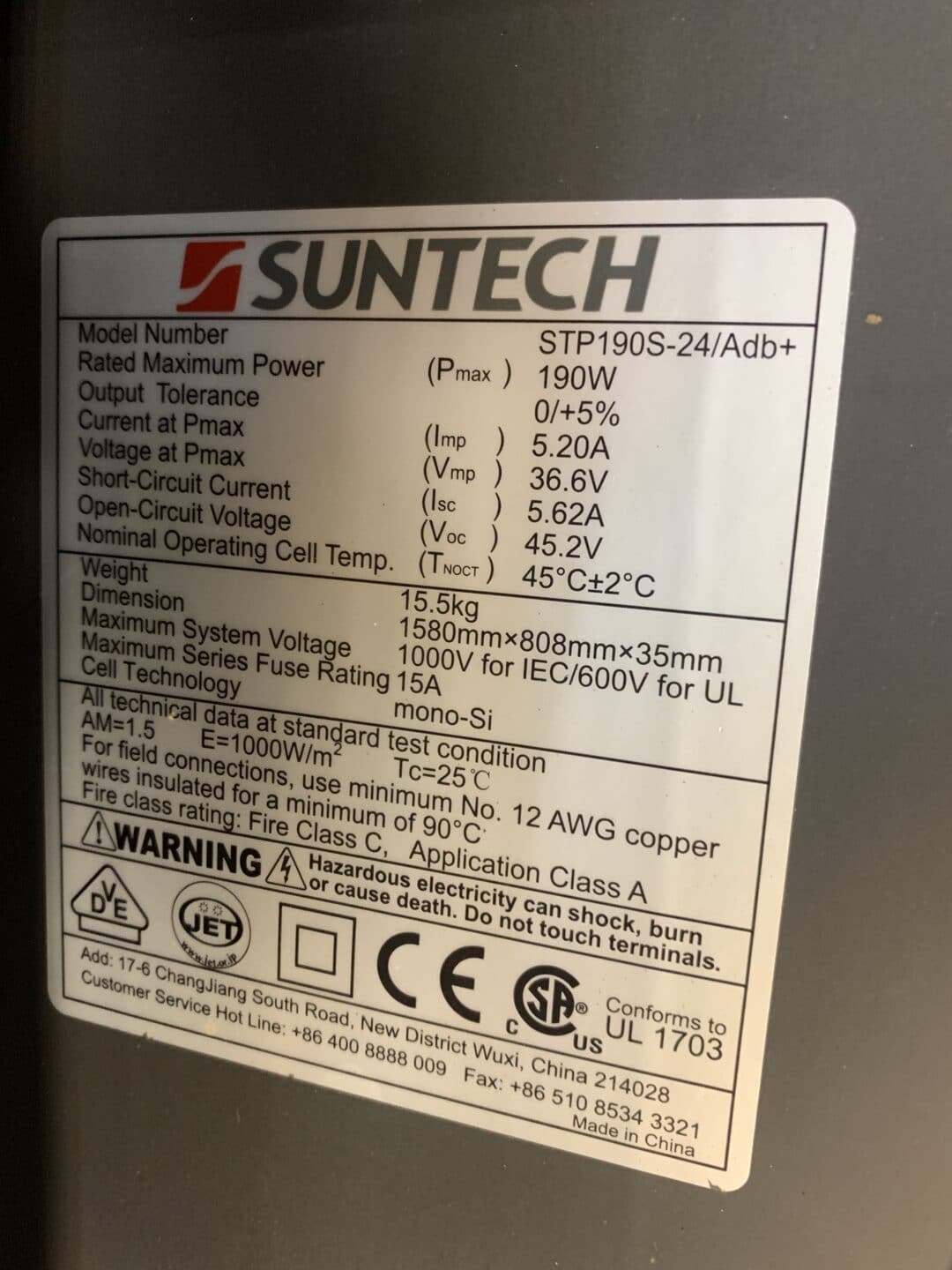

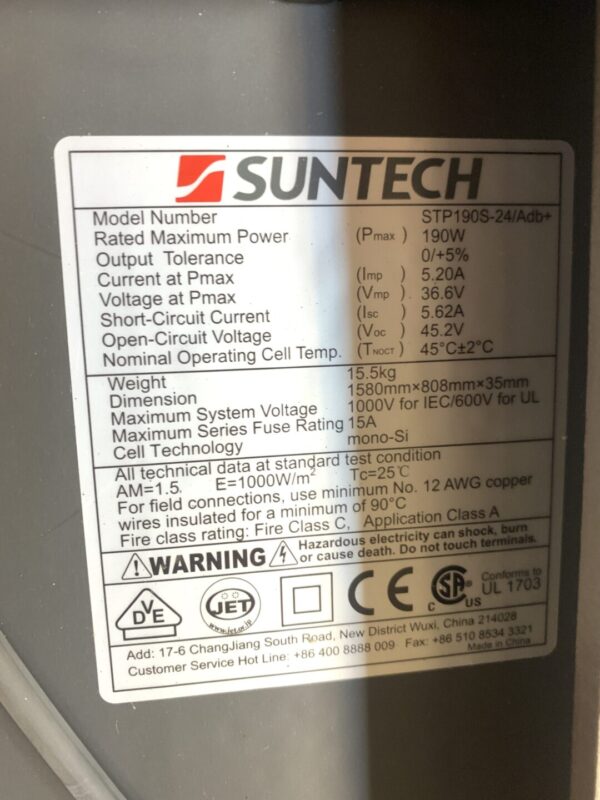

Brand: SunTech
Model: STP 190S-24/Adb+
Panel Thickness: 2 In.
Solar Panel Qty.: 2 Per Unit
Optimum Operating Voltage (Vmp): 36.6 V
Optimum Operating Current (Imp): 5.20 A
Open Circuit Voltage (Voc): 45.2 V
Short Circuit Current (Isc): 5.62A
Maximum Power at STC (Pmax): 190 W
Module Efficiency: 14.9%
Operating Module Temperature: -40 °C to +85 °C
Maximum System Voltage: 600 V DC (UL)/ 1000 V DC (IEC)
Maximum Series Fuse Rating: 15 A
Power Tolerance: 0/+5 %
Panel Overall Dimensions: 62.75 In. W 64.5 In. H

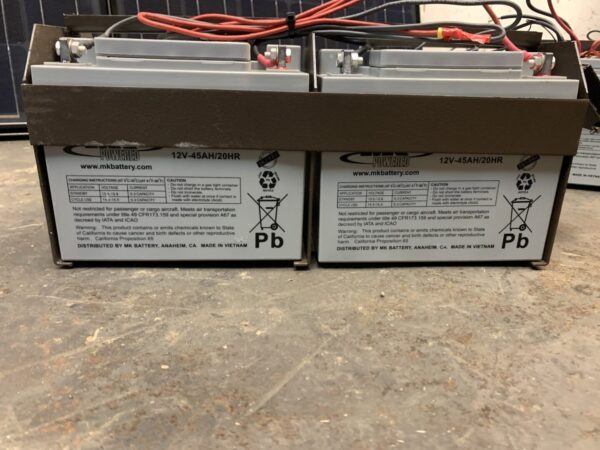

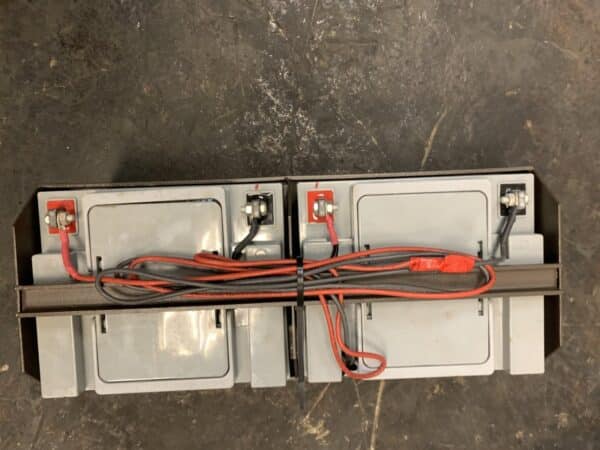

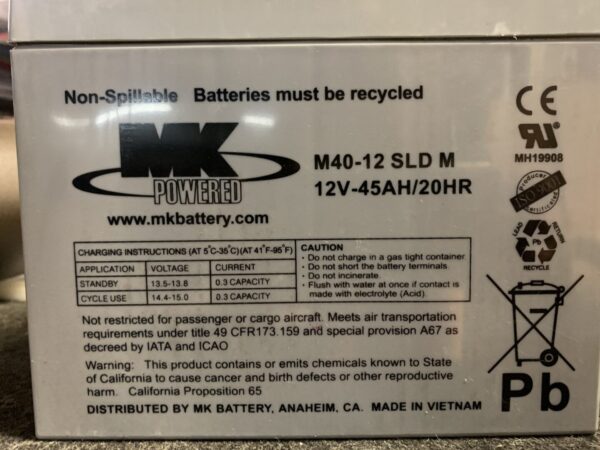

Battery Packs:
Total Num of Batteries: 8 ( 2 Per Pack )
DC Output Voltage: 12 V
Amp/Hr: 45 AH
20 Hour Rate (2.25A to 10.50V): 45 AH
10 Hour Rate (4.275A to 10.50V): 42.75 AH
5 Hour Rate (7.65A to 10.20V): 38.25 AH
1C (45A to 9.60V): 25.5 AH
3C (135A to 9.60V): 18 AH
Internal Resistance (at 1KHz): Approx. 7 mΩ
Maximum Discharge Current for 5 Seconds: 540 A
Operating Temperature Range: Charge/Storage: 5°F to 104°F: Discharge: 5°F to 122°F
Maximum Charging Current: 13.5A
Cycle Charging Voltage: 14.4 – 15.0 Volts
Float Charging Voltage: 13.5 – 13.8 Operating Temperature Range: Charge/Storage: 5°F to 104°F; Discharge: 5°F to 122°F
Maximum Charging Current: 13.5A
Cycle Charging Voltage: 14.4 – 15.0 Volts
Float Charging Voltage: 13.5 – 13.8 Volts

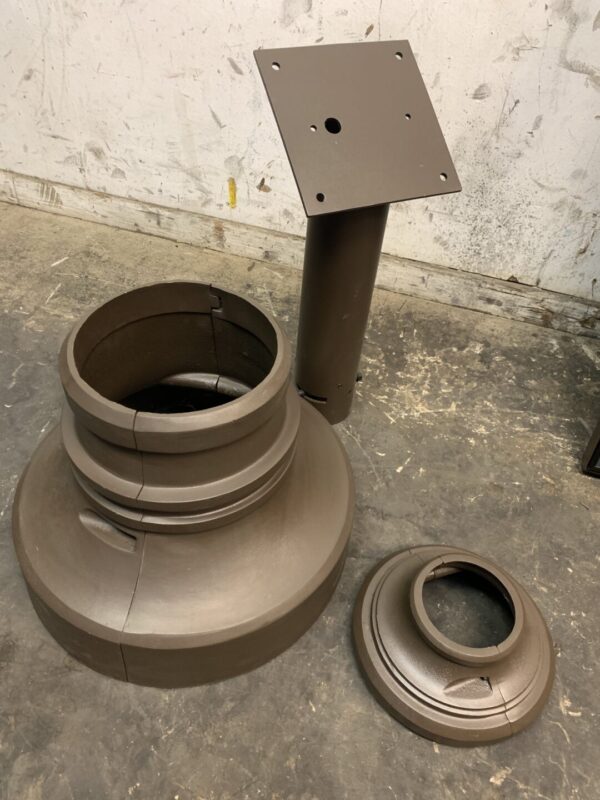

Base and Stand:

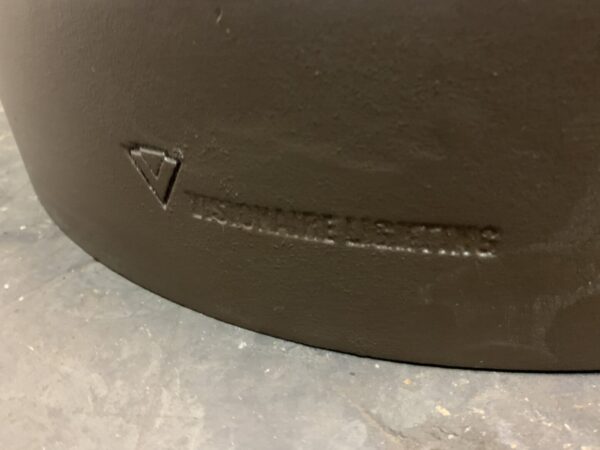

Brand: Visionaire Lighting
Finish: Bronze
Material: Cast Iron
CCR16091
